135compact.com       110 cartridge or 16mm ultra compact cameras       How to make a 110 or 16mm Jobo film developing reel yourself
                                                                                                                     How to use a 16mm Kiev reel in a Jobo tank


110 film and 16mm film are basically the same width. If you want to process your 110 or 16mm film yourself, you will need a 16mm reel. The only ones still available are Jobo reels. There is a 1502 reel for the 1500 system and a 2001a for the 2000 system. Both are quite expensive, shipping included you will have to pay 60€ and more just for the reel. That's a lot, if you just want to have a try. You may however have a 35mm/120 duo reel, they are cheap and usually come with the tank. Making a 16mm reel out this reel is easy, but not reversible.

This is what a 35mm/120 duo reel looks like:

jpg/jobo_16mm_110_reel_IMG_0770.JPG
A
reel from the 2000 system. A 1500 system reel would work as well-

jpg/jobo_16mm_110_reel_IMG_0771.JPG

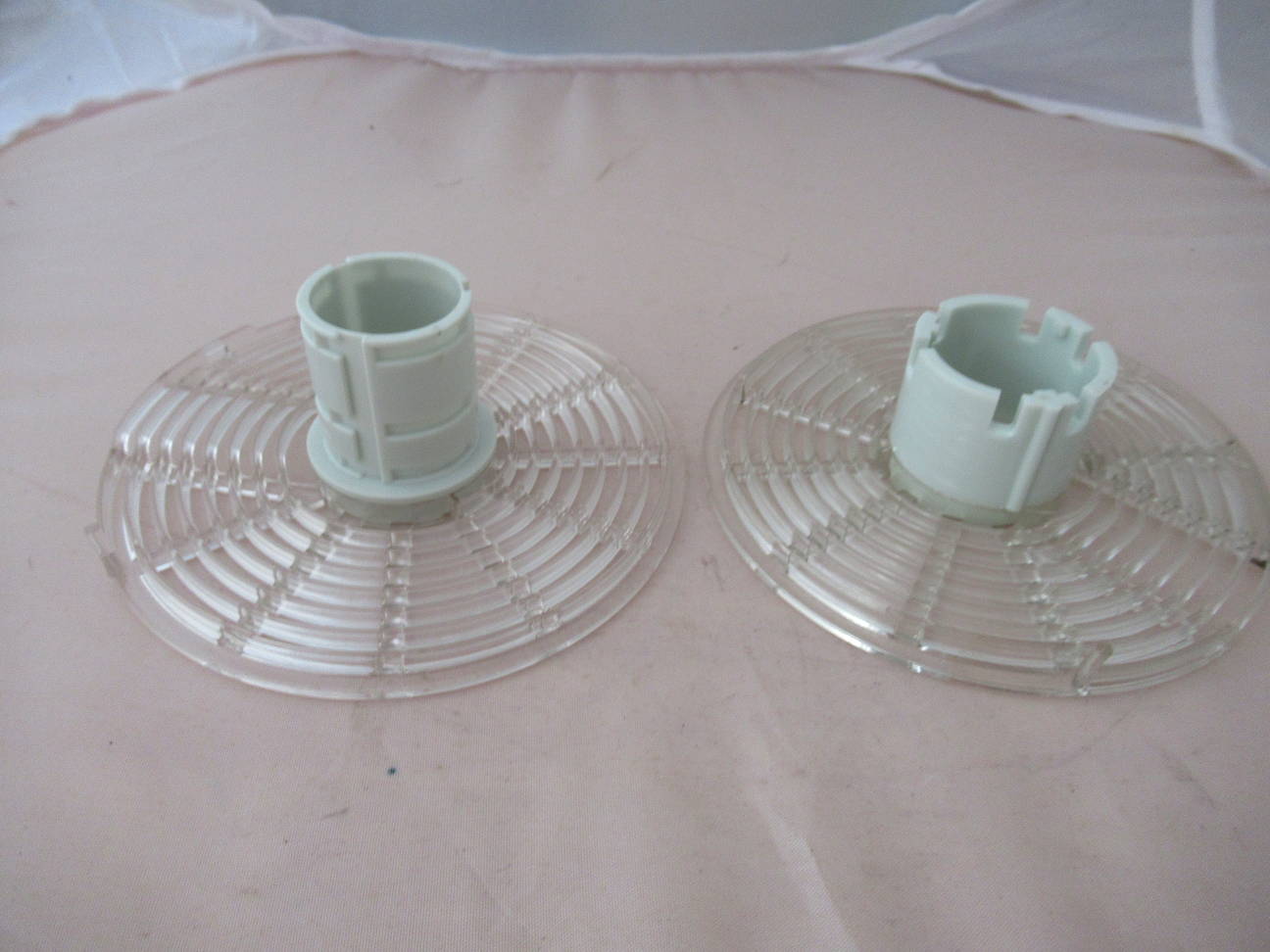

Taken apart. You have to turn over a little stop.

You will need a Dremel or a similar tool, but you can also cut with a saw. Disclaimer: do not try to do this unless you have basic DIY skills and if you understand what you do.

jpg/jobo_16mm_110_reel_IMG_0771a.JPG

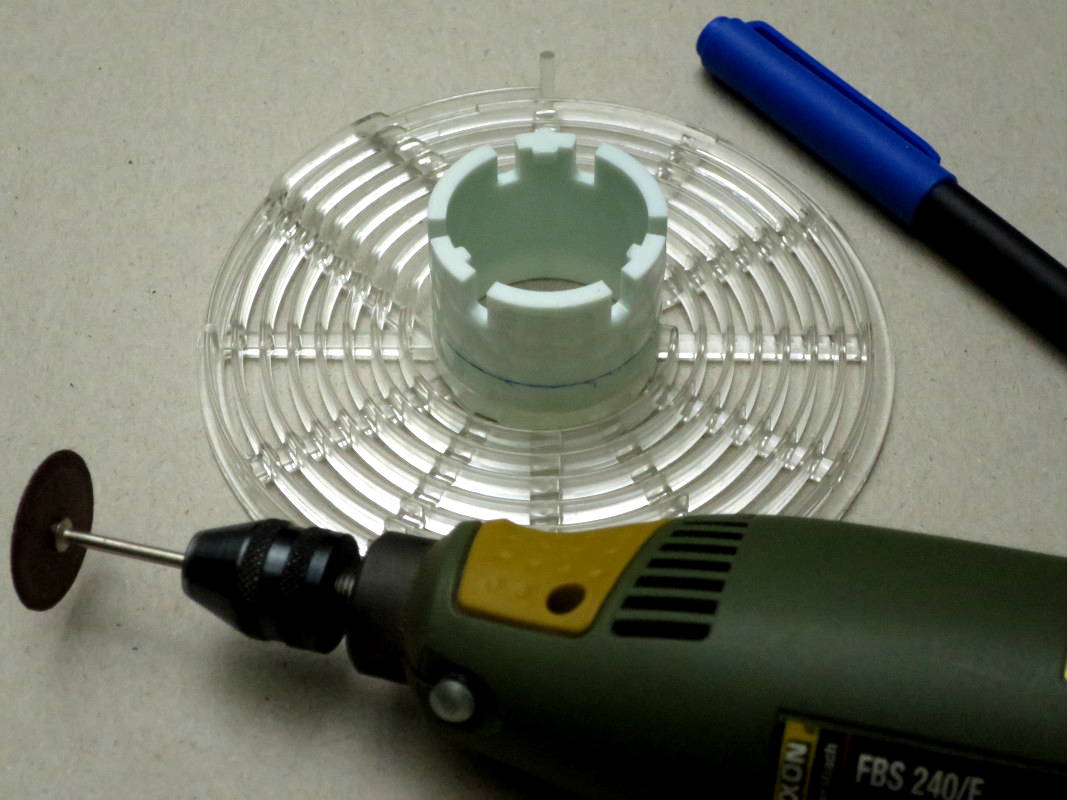

You have to cut the upper part off. Cut cautiously, you will also need the cut-off part later. Cut off 18mm. You will lose about 1mm of the material by your tool, that's o.k. Do not cut into the remaining part or your reel will be to narrow.

jpg/jobo_16mm_110_reel_IMG_0771b.JPG

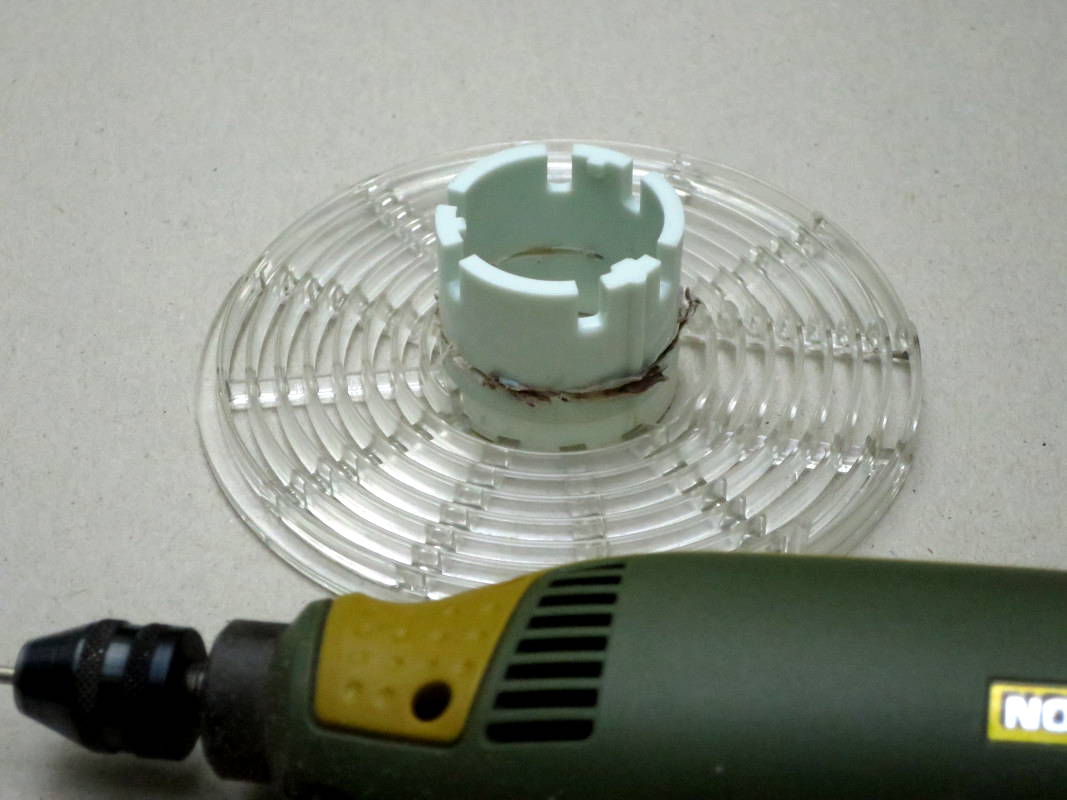

The plastic will burn a bit and it stinks.

jpg/jobo_16mm_110_reel_IMG_0771c.JPG

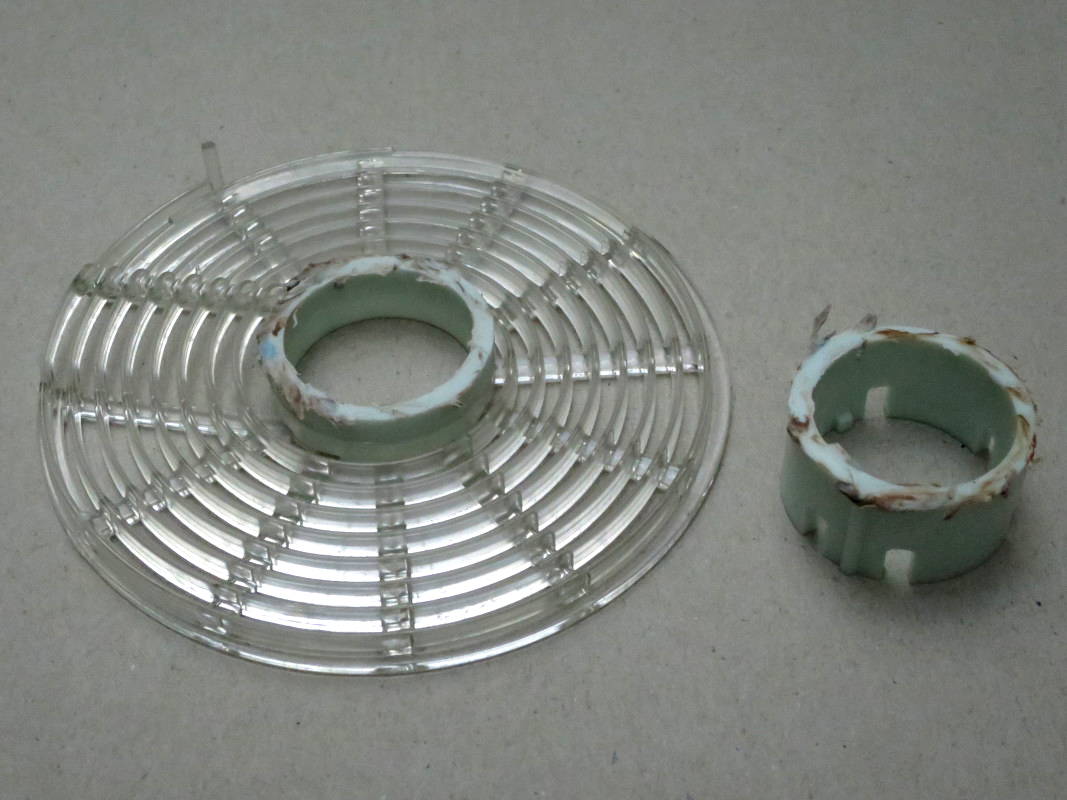

Cutting done..

jpg/jobo_16mm_110_reel_IMG_0771d.JPG

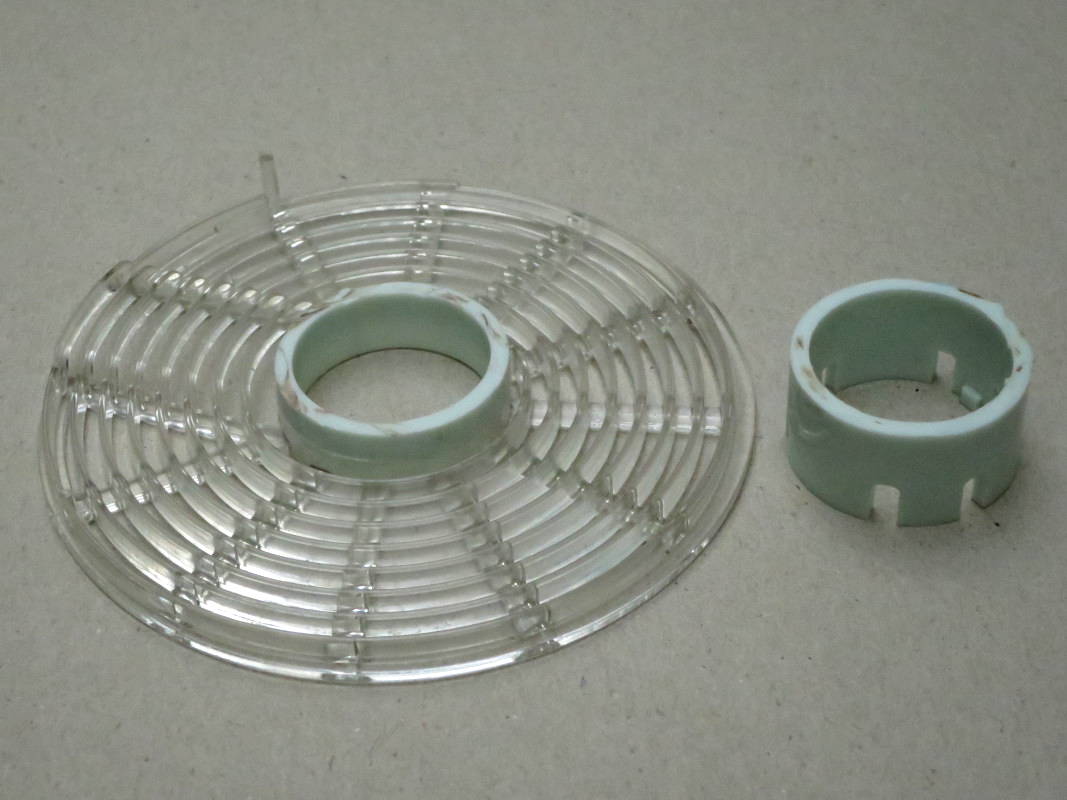

A bit of sandpaper and it's fine.

jpg/jobo_16mm_110_reel_IMG_0772.JPG

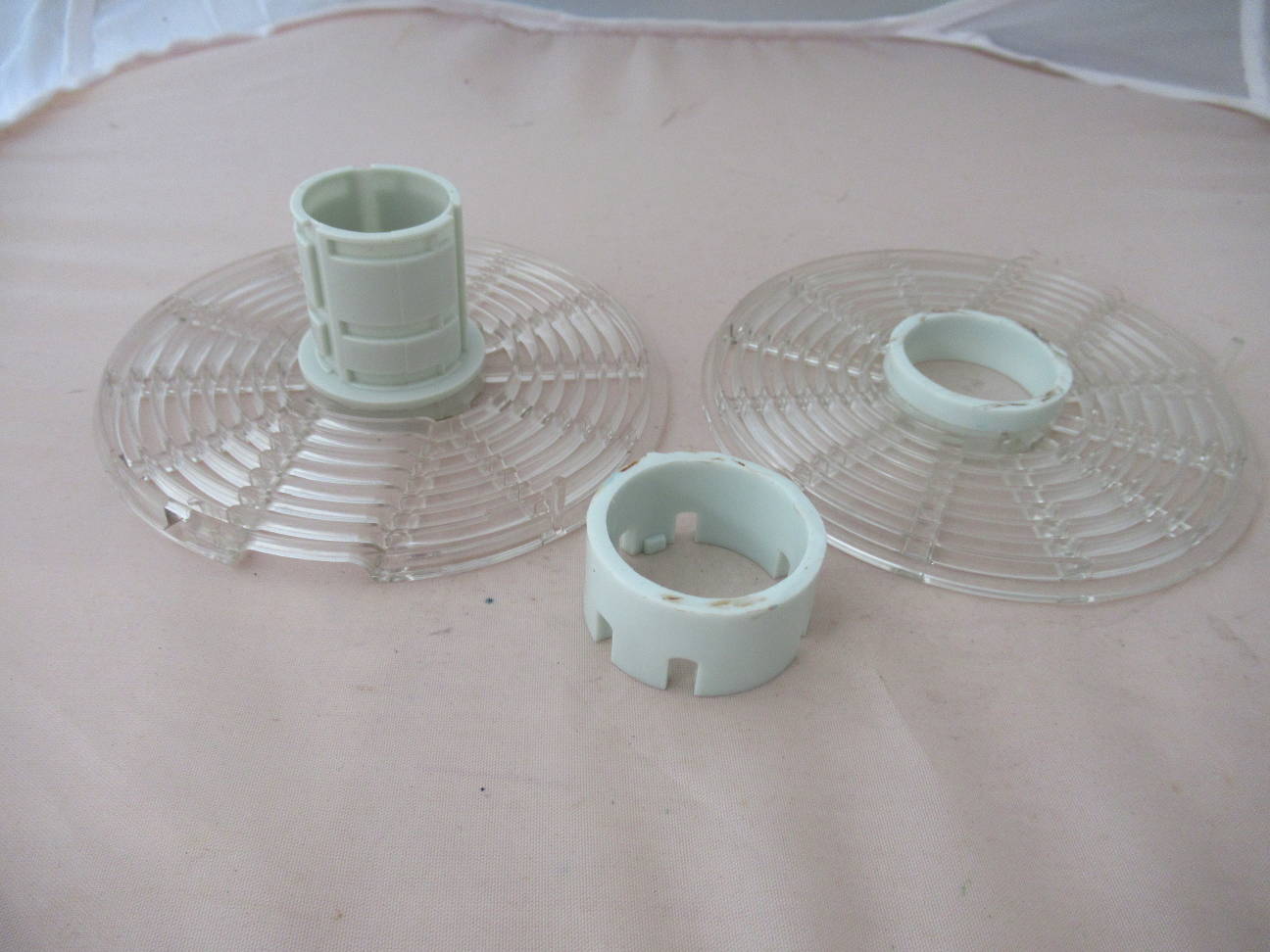

Now you have these parts.

jpg/jobo_16mm_110_reel_IMG_0773.JPG

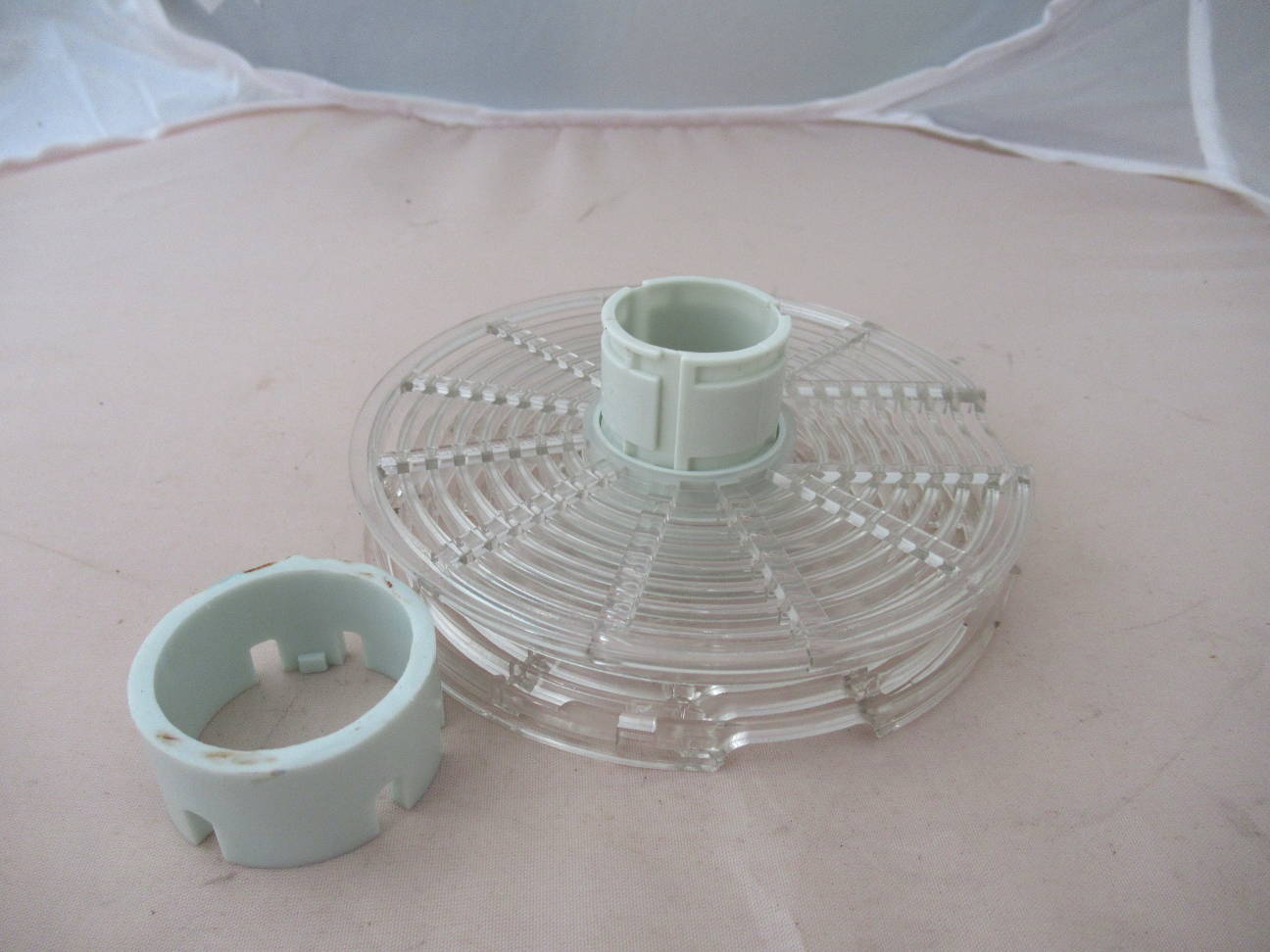

The cut reel assembled to a smaller reel.

jpg/jobo_16mm_110_reel_IMG_0774.JPG

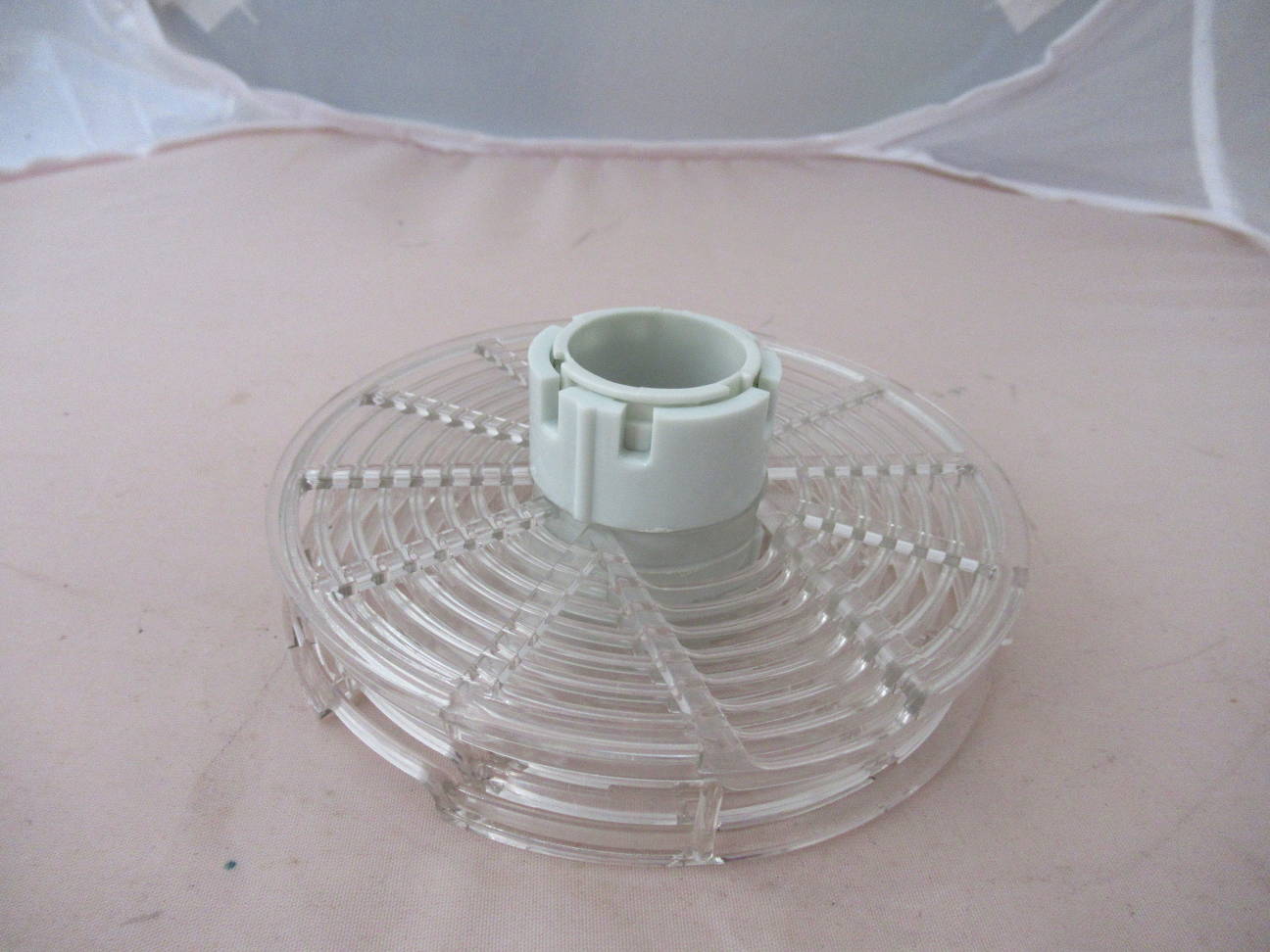

The remaining part secures the spool. You may have to plane a tiny bit of the stops to get over them. All done.

jpg/jobo_16mm_110_reel_IMG_0776.JPG

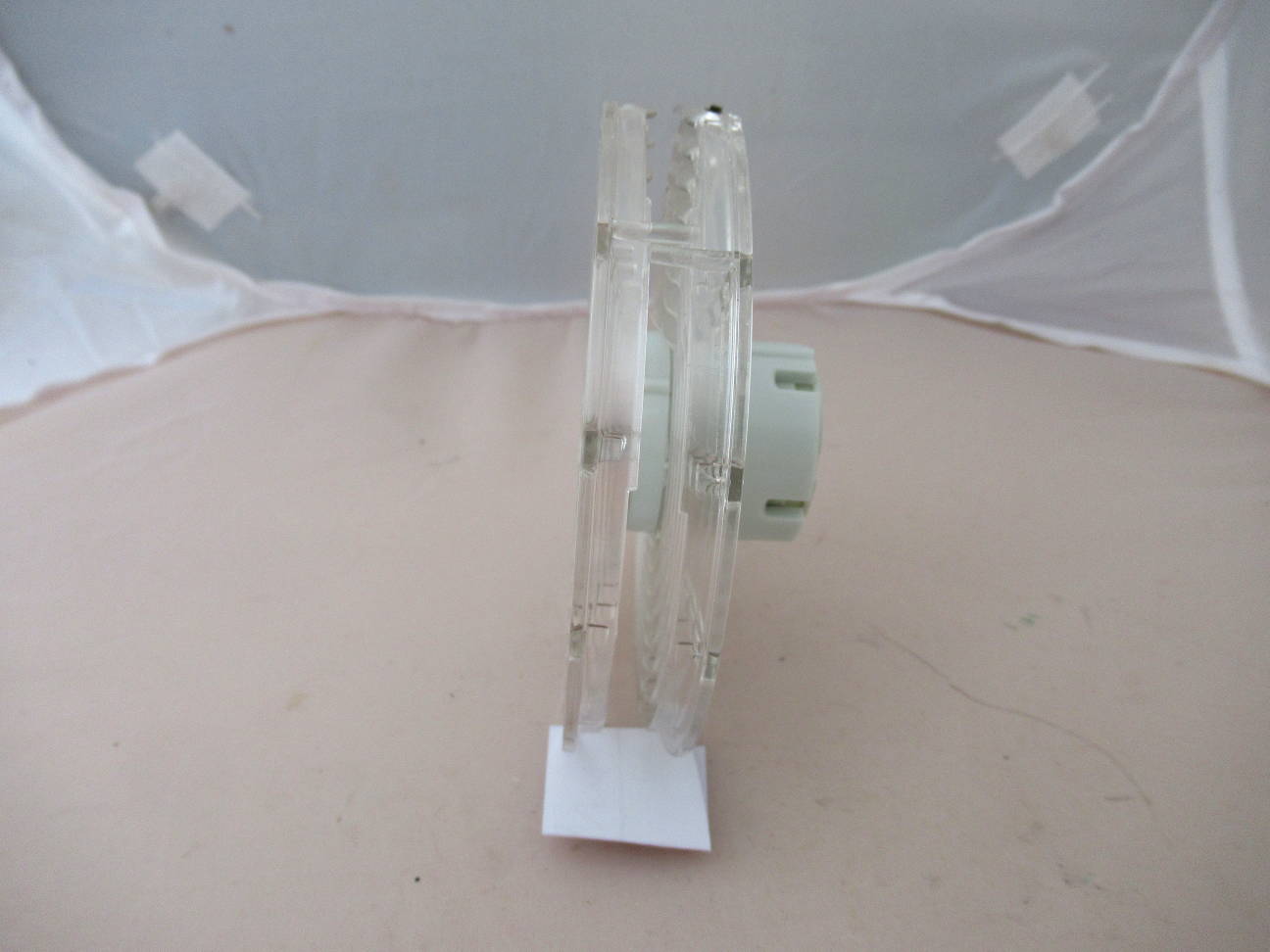

Your new 16mm or 110 film reel..

jpg/jobo_16mm_110_reel_IMG_0777.JPG

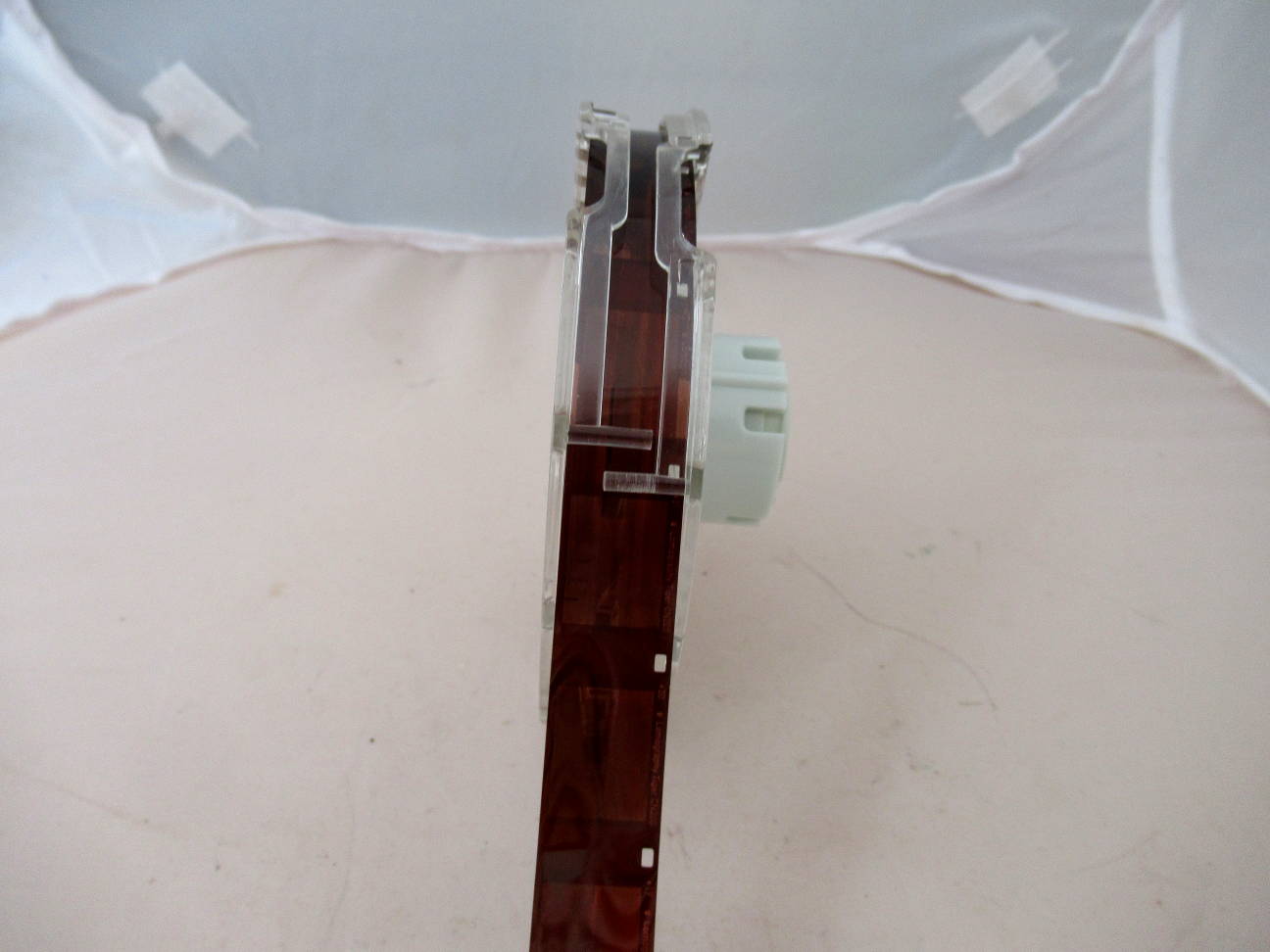

The spool with a bit of film, 110 film in this case.

jpg/jobo_16mm_110_reel_IMG_0778.JPG

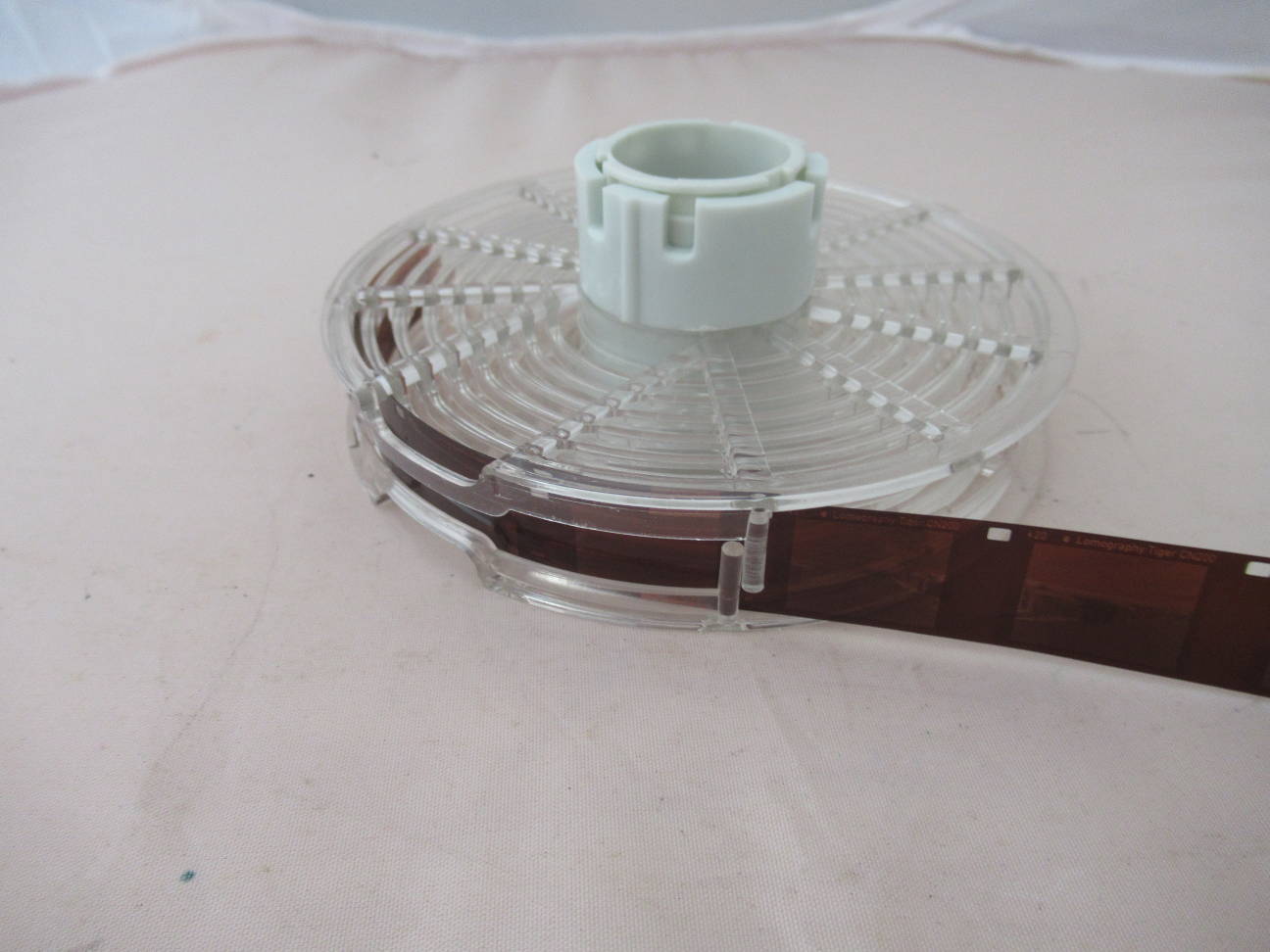

The new 16mm or 110 film reel for cheap.

So here you are with a developing reel. Enjoy your cameras, be it 16mm or 110!

The Kiev 30 often comes as a set with a developping tank and a 16mm reel acessory. The Kiev tank looks a darkroom tank, but people told me that it is a daylight tank indeed. As I'm used to Jobo tanks, I would not trust it too much, but that's a personal feeling. If you prefer Jobo developping, there is way to do so.

jpg/16_kiev_30_IMG_1009.JPG

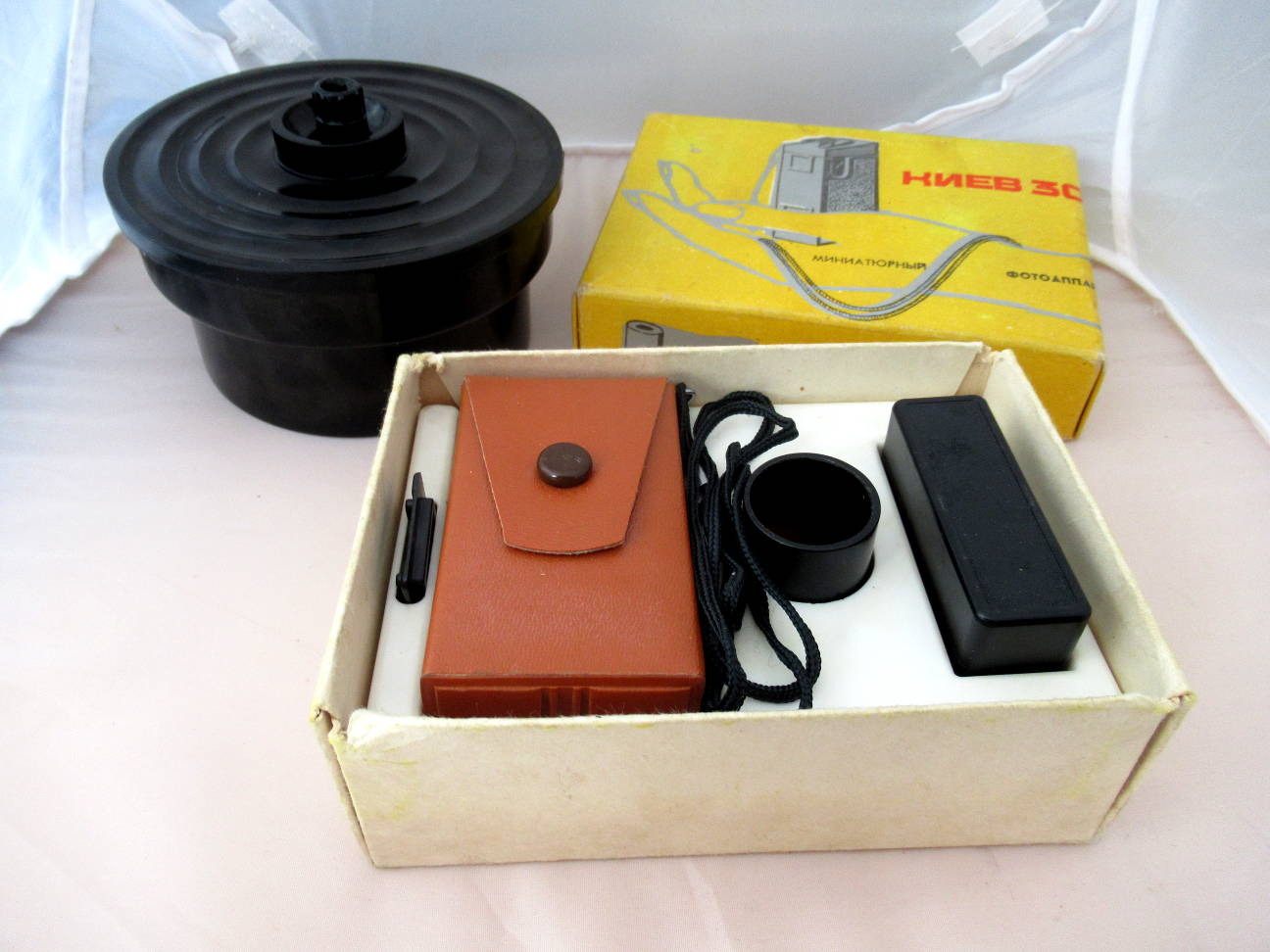

The set: camera, case, a spare cartrige in its case, a 16mm mask for the enlager, a 16mm spool accessory (under the camera) and a 35 mm darkroom developping tank.

jpg/16_kiev_30_IMG_1042.JPG

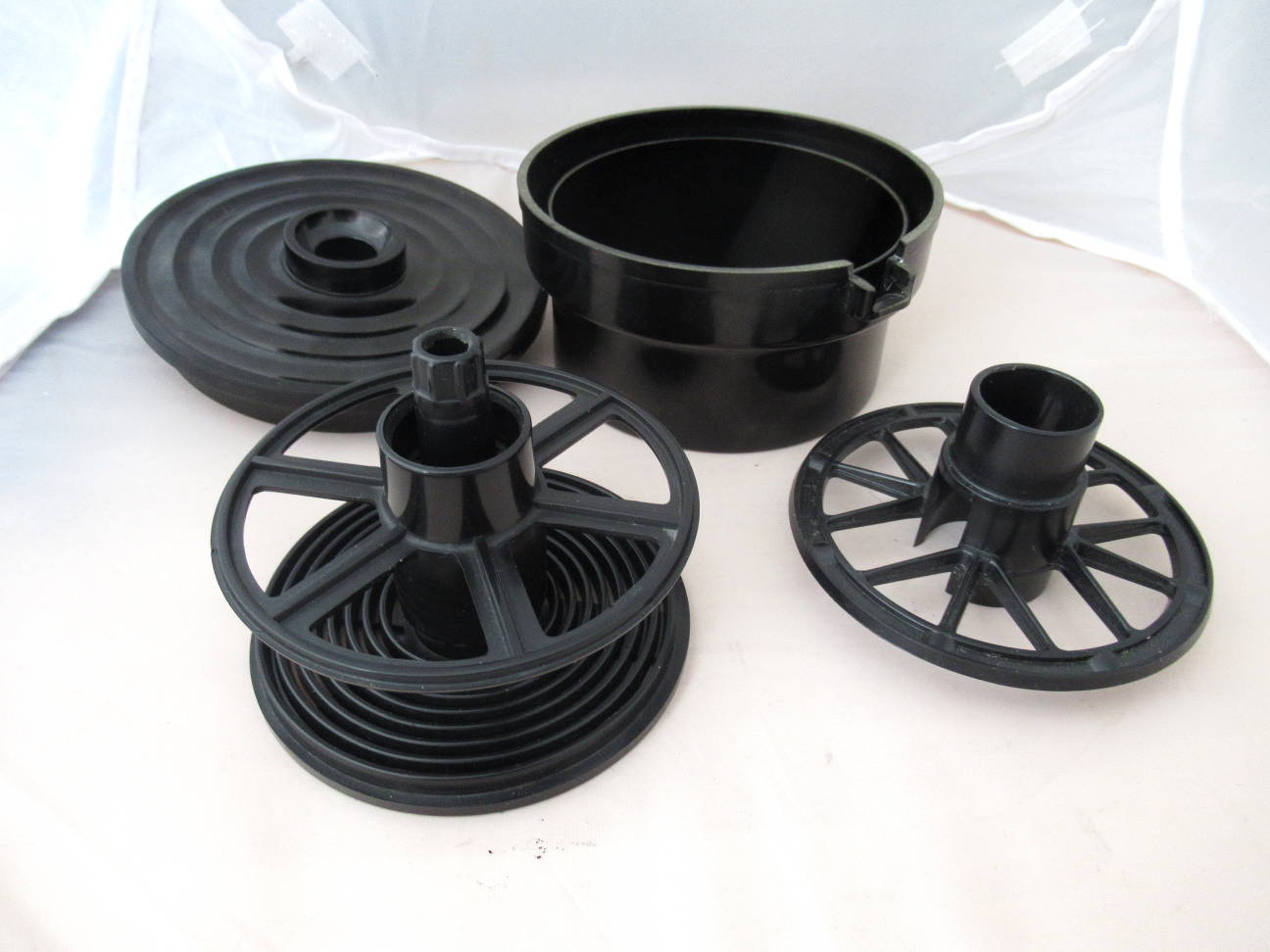

The 35mm spool and the 16mm accessory.

jpg/16_kiev_30_IMG_1044.JPG

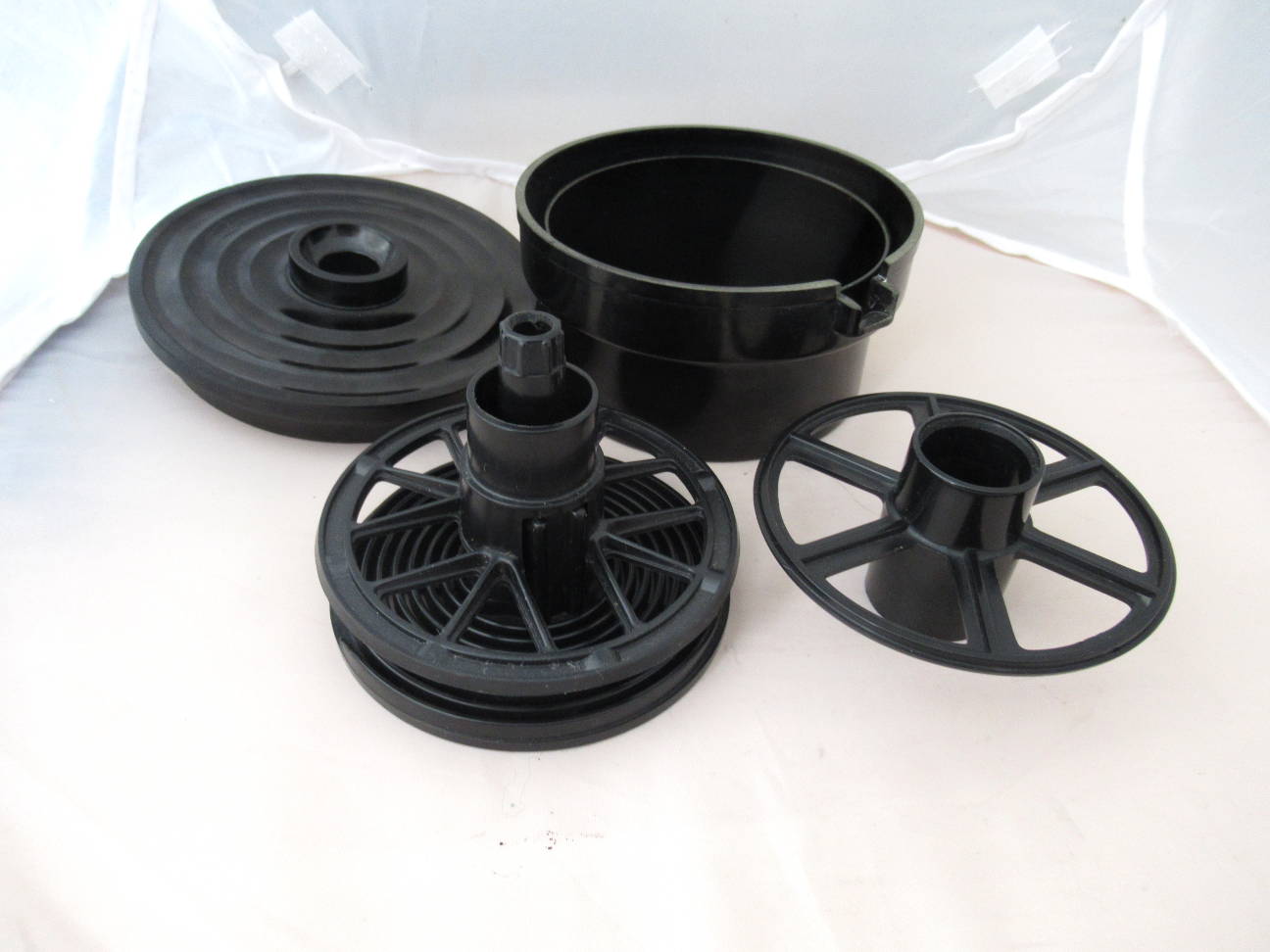

Ready for 16mm.

jpg/16_kiev_30_IMG_1047.JPG

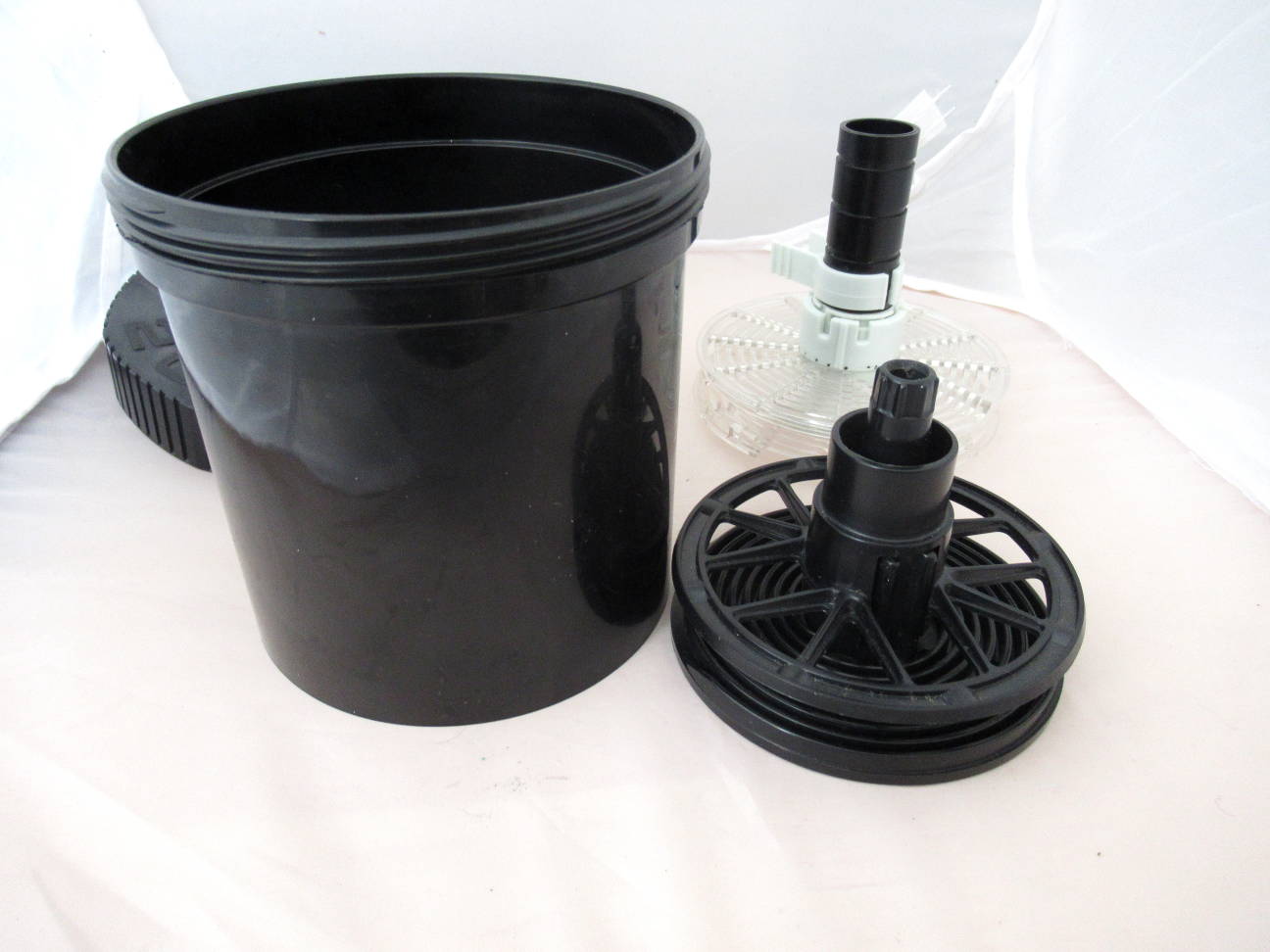

The 16mm Kiev spool and a Jobo 2000 tank.

jpg/16_kiev_30_IMG_1048.JPG

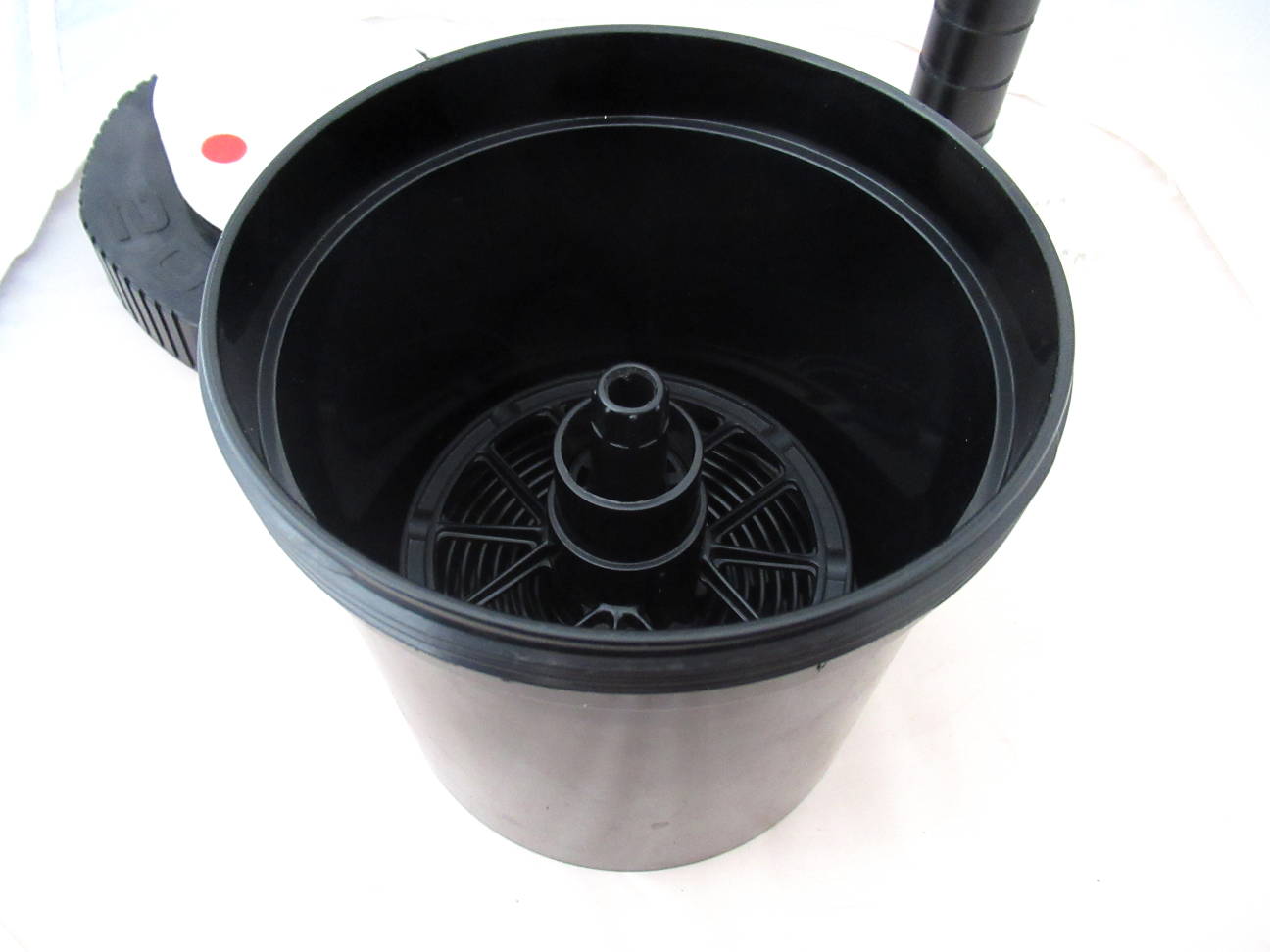

Put the spool into the tank.

jpg/16_kiev_30_IMG_1049.JPG

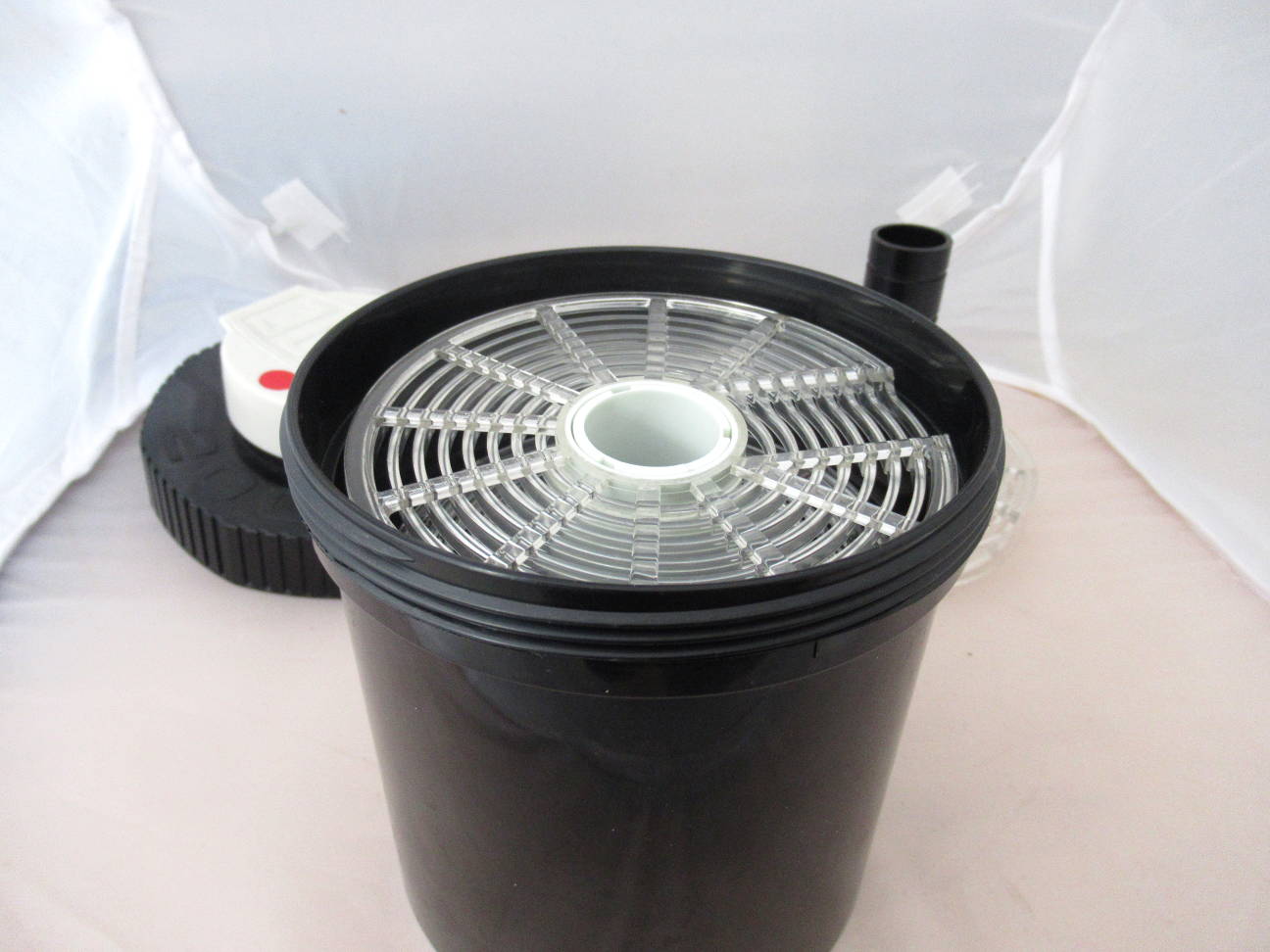

Put an ordinary 35mm spool on top of it, it slides over a part of the Kiev core.

jpg/16_kiev_30_IMG_1050.JPG

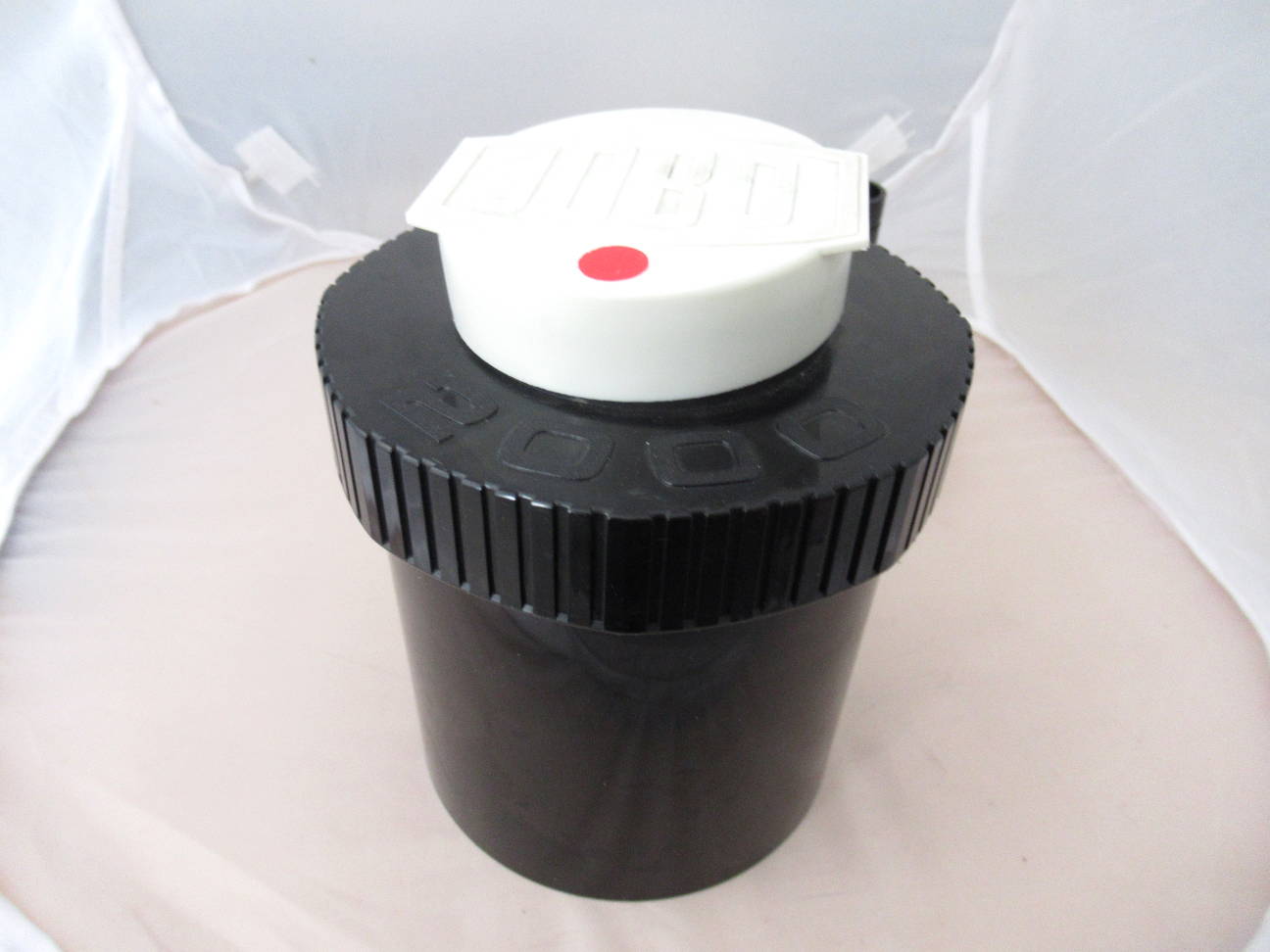

Put on the lid and you're ready. It's all held in place.

jpg/16_kiev_30_IMG_1052.JPG

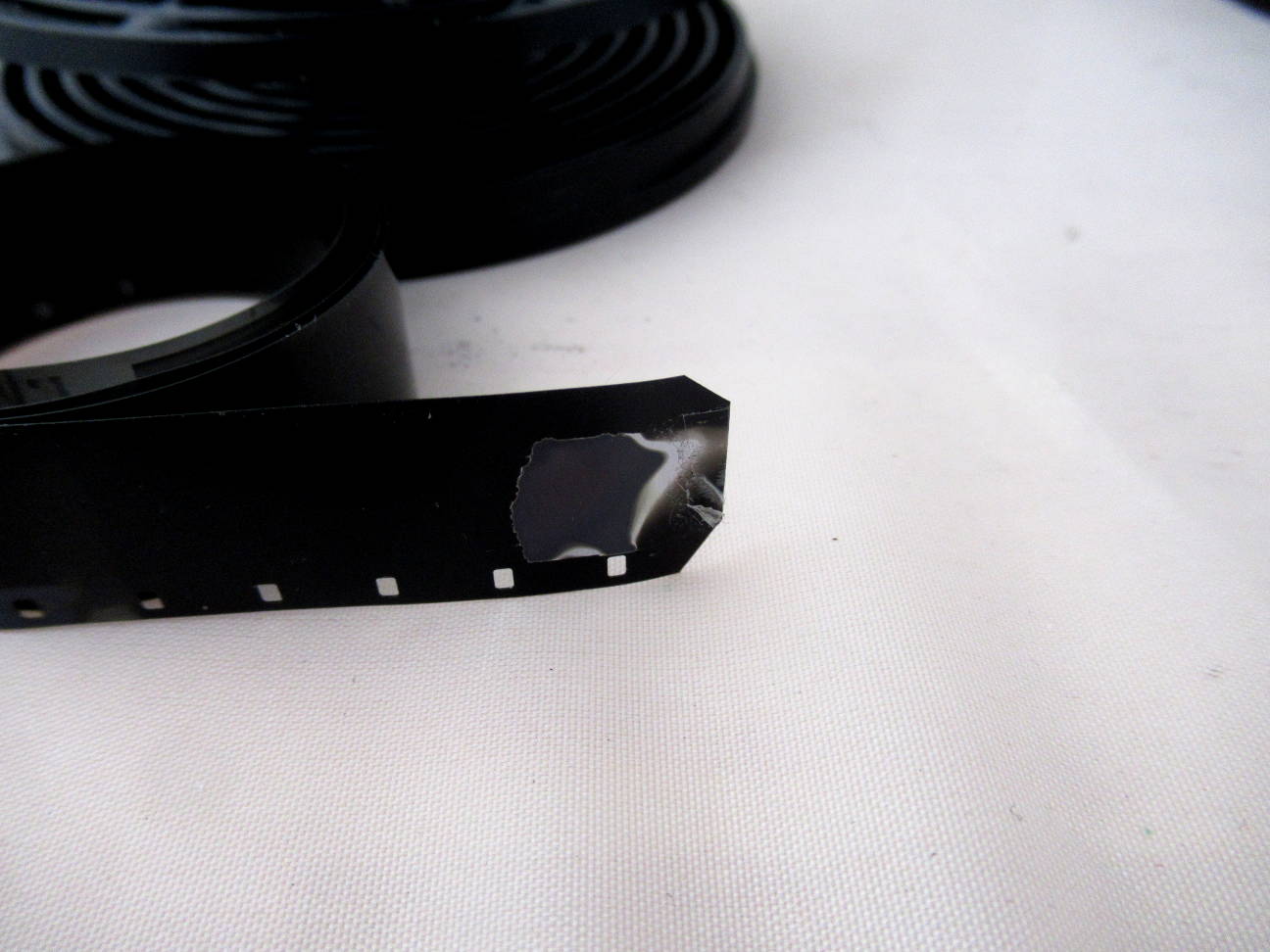

Cut the edges of your film before you insert it into the reel, the rounder the better. The Kiev reel has only one spiral side and you have to push the film all in. With 45cm of film length that's faisable. Have a try with delelopped film first.

So here you are with 2 possiblities for a cheap 16mm reel.
